Steel Spring Pressure Tester
1. The Use
Steel spring pressure tester can test and analyze the mechanical properties of various springs.Can be widely used in automobiles, trains, aviation, spring manufacturers and other industries. This series of models is mainly applicable to the test of mechanical properties of the test load≤100kN.
2. Main function
a. Basic functions：the device can perform standard load test and full compression test on the spring in manual or automatic mode.
b. The main structure and function of the main components of the equipment: mechanical systems, electrical systems, measurement systems, industrial computer systems.
Mechanical system: including spring positioning mechanism, guard plate, auxiliary table and lifting table.
Electrical system: It consists of the IPC core components.
Measuring system: The spring pressure measurement is achieved through the load cell under the work panel.
c. Safety assurance function: according to different tests, the device can adjust the position of the limit switch to prevent the fixture from colliding. With overload, overcurrent, leakage and other protection features, easy for operators to safely and easily perform operations.
3. Main structural composition
The main components of the equipment: mechanical system, electrical system, measurement system, industrial control system and etc.
Mechanical system: including spring positioning mechanism, guard plate, auxiliary table and lifting table.
Electrical system: It consists of the IPC core components.
Measuring system: The spring pressure measurement is achieved through the load cell under the work panel.
4. The main technical parameters
(1) Maximum test load: 100 kN (tentative);
(2) Load test accuracy: 3%;
(3) height measurement range: 200 ~ 740 mm;
(4) Height measurement accuracy: ± 0.5 mm;
(5) Overall dimensions (length × width × height): approx. 1300 × 1100 × 1655 (mm);
(6) Weight: about 1600 kg.

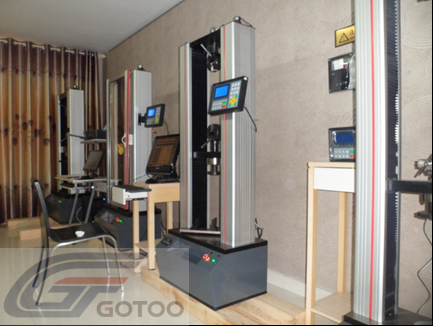

5. Equipment pictures

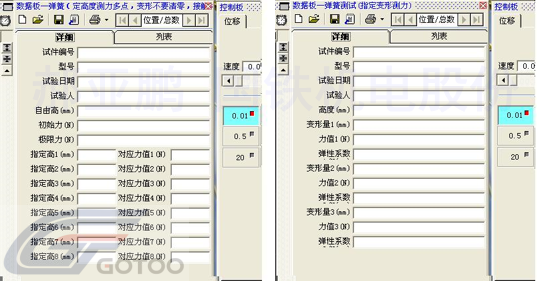

6. Software interface
