Traction motor no-load test bench
1. Equipment use
The test bench is controlled by an industrial computer, which enables centralized and decentralized control of the drive unit. At the same time, an independent control function area is provided on the operation platform to realize control of the drive unit. Simultaneously measure the motor's rotation speed, motor and gearbox vibration, temperature motor efficiency, voltage, current, frequency, noise and other main test parameters while the motor is rotating.
2. Main functions
The computer and the advanced and reliable programmable controller PLC are used as the control platform to fully realize the automatic control of the test process and the automatic acquisition of the test data. The parameters collected are all test parameters: including motor efficiency, voltage, current, frequency, speed, noise, etc.), automatic recording, automatic generation of report archives, completion of multiple consecutive tests and comparison of results (drawing torque characteristics, etc.) and other functions.
3. Main structural composition
The test bench should be composed of a microcomputer system, a console, a power cabinet, a frequency converter, an electrical instrument, a sensor or a measuring instrument.
4. Main Technical Parameters
|
Traction motor no-load test bench characteristics and technical parameters |
||
|
Basic characteristics of traction motors |
||
|
1 |
Motor type |
3-phase squirrel cage induction motor |
|
2 |
Cooling system |
Self-venting type |
|
3 |
Rated output |
190kw (hourly) |
|
4 |
Rated voltage |
570V |
|
5 |
Rated current |
230A |
|
6 |
Rated frequency |
61Hz |
|
7 |
Maximum revolving speed |
1800 rpm |
|
8 |
Common maximum revolving speed |
3642rpm |
|
9 |
No. of stage |
4 |
|
10 |
Slip ratio |
1.64 |
|
11 |
Weight |
530kg |
|
Test bench technical parameters |
||
|
1 |
Input power |
50HZ 3×380V (±10%) |
|
2 |
Output voltage: |
0 ~ 600V AC adjustable, error <0.2% |
|
3 |
Output frequency |
0～200 HZ adjustable, error <0.2% |
|
4 |
Feedback frequency |
0～200 HZ adjustable, error <0.2% |
|
5 |
Braking time |
0~30S adjustable, error <0.2% |
|
6 |
Running time: |
can be set arbitrarily, the error is <0.2% |
|
7 |
Maximum speed |
3345 r/min, error <0.2% |
|
8 |
Temperature range: |
-18 ° C ~ 200℃, error <0.2% |
|
9 |
Detection accuracy |
0.1% Fs or more |
|
10 |
Instrument accuracy level |
above 0.2 |
|
Industrial computer system configuration requirements |
||
|
1 |
Hard disk capacity |
500G and above |
|
2 |
Memory |
4G and above |
|
3 |
Processor |
Core I5 and above |
|
4 |
LCD screen |
19 inches and above |
|
5 |
USB interface |
≥2 pieces |
|
6 |
DVD drive |
Yes |

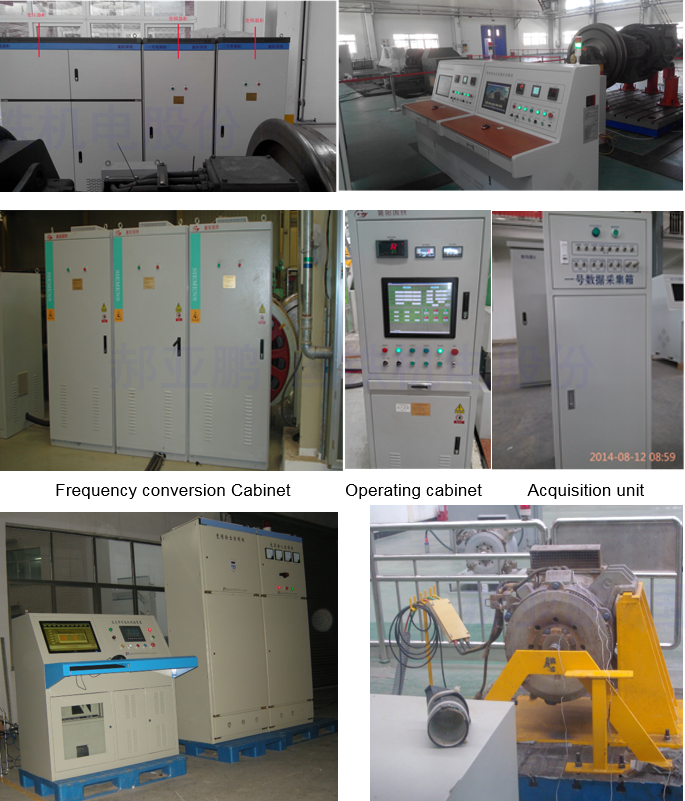

5. Equipment pictures

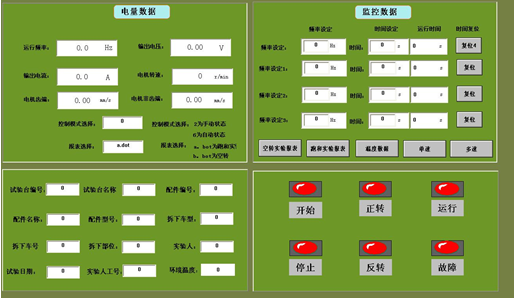

6. Device software interface
